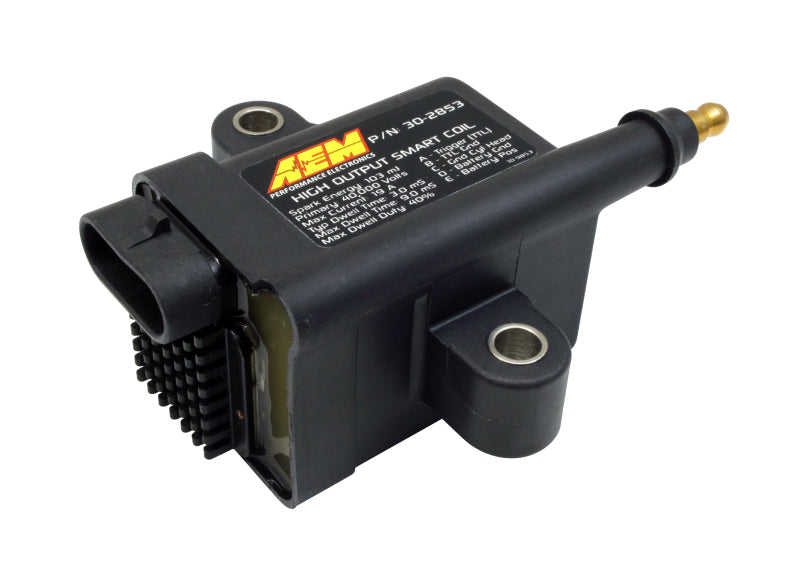

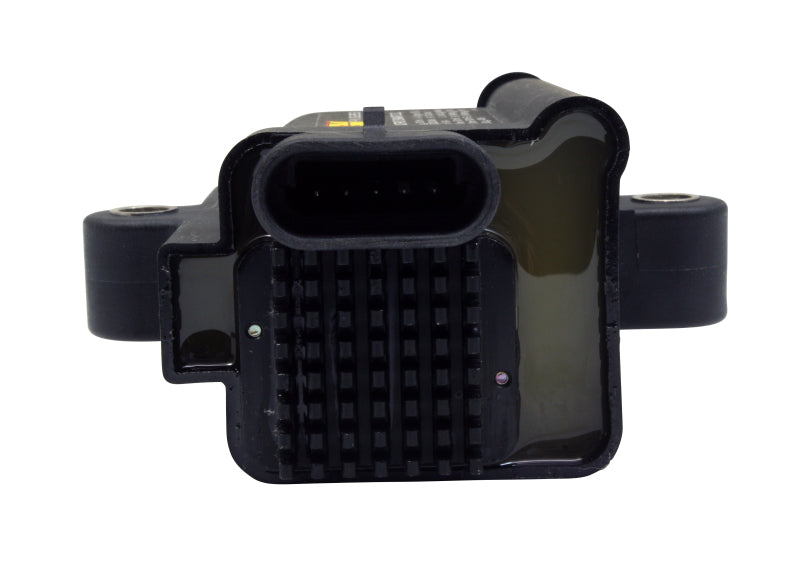

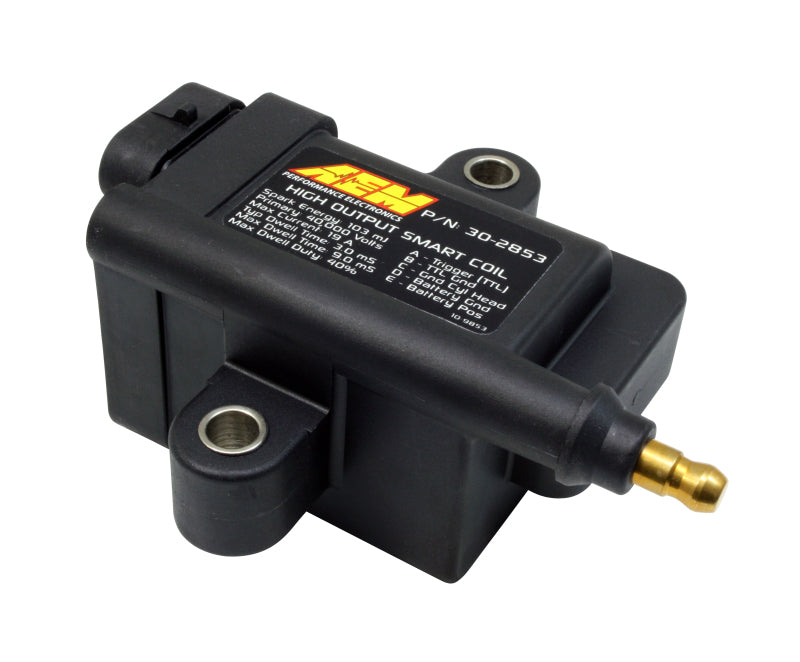

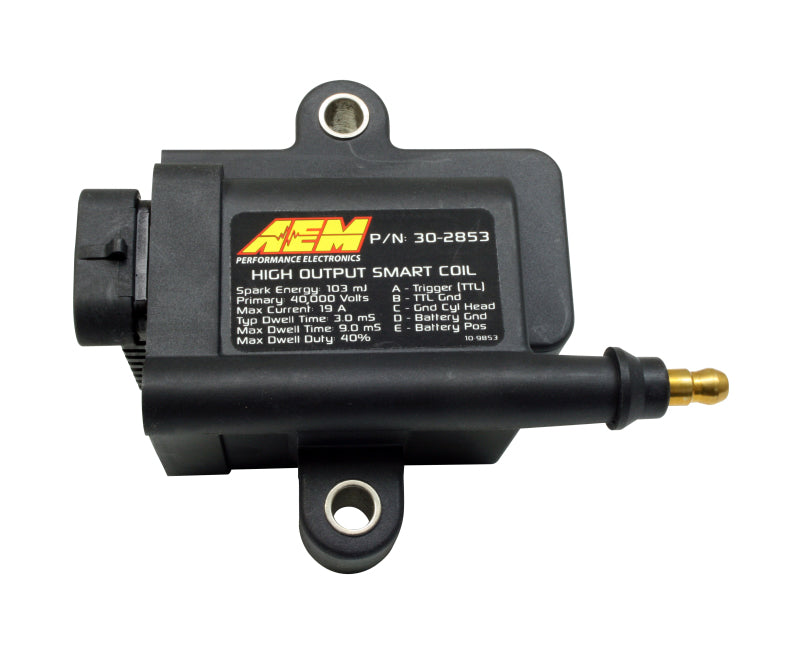

AEM Universal High Output Inductive Smart Coil

AEM30-2853

⚠️ CARB Compliance: This product is not CARB-approved and cannot be shipped to California or other carb restricted states. See our Privacy Policy »
Regular price $83.66
Sale price $83.66 Regular price $104.95
Shipping calculated at checkout.
Request Price Match

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

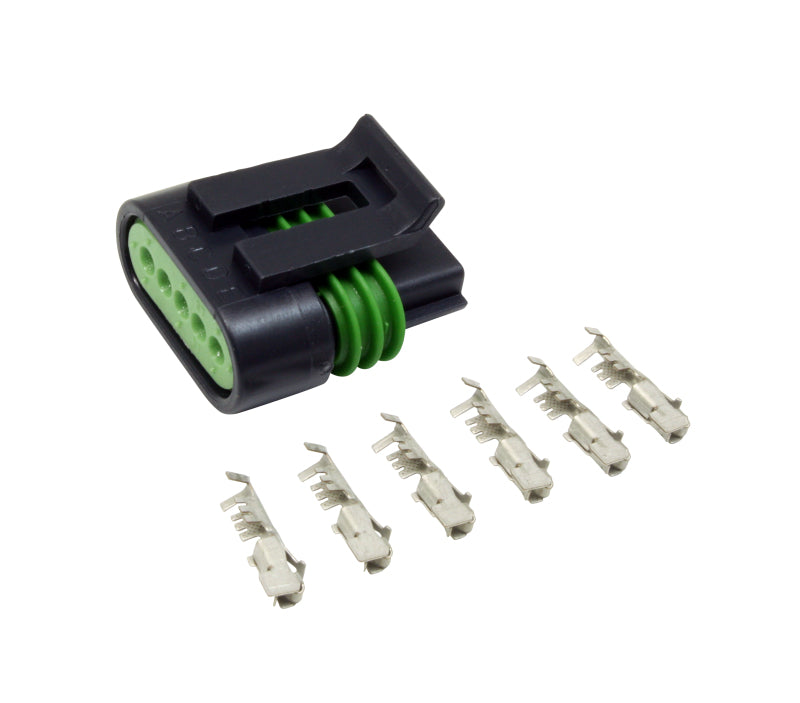

AEM High Output IGBT Smart and Dumb Coils are designed for coil-near-plug use ONLY and are not intended for distributed ignition systems. AEM cannot guarantee or warranty IGBT coil performance when used on distributed ignition vehicles. The coil delivers a minimum 40kV output with no load and 40kV ±10% with a 50pF load. Output energy is 103 mJ ±7%, peak secondary current is 102 mA ±10%, arc duration is 2.9 mS ±10%, and turns ratio is 71:1. Maximum current is 19 amps with a maximum battery voltage of 17 volts. Base dwell is 3.0 mS. Maximum continuous dwell is 9 mS and should not exceed a 40% duty cycle, while maximum intermittent dwell is 80% duty cycle for up to 5 seconds. Uses a Packard/Delphi 12162825 "Pull to Seat" mating connector and Packard/Delphi 12124075 "Pull to Seat" mating contacts. The high-tension wire terminal uses an HEI "spark plug top" style connection.

Warranty
Installation Instructions
  • Deliver CDI-like spark energy-No CDI Module needed
  • Up to 40kV Output Voltage, without using a CDI
  • Incredibly long spark duration, up to 2.9mS
  • Can be mounted directly to the Engine
  • Cost less than aftermarket LS1 coils
  • Massive Spark Energy, up to 103 mJ
  • Can be mounted almost anywhere
  • Weather and Shockproof design
MPN: 30-2853
